Gresham

Even More Choice From Gresham’s Vast Range of Power Supply Units

Product

CoolX1000 Series.

  • CoolX1000 Series

  • Advanced Energy’s CoolX®1000 series, part of our low voltage solutions, is the world’s only fanless 1000 W modular power supply.

    • Packaged in a compact 254 mm x 165.1 mm x 39.1 (10 in x 6.5 in x 1U) U-channel design, the CoolX1000 provides up to 1000 W without any requirement for fan or base plate cooling, eliminating acoustic noise detrimental to scientific and medical applications, as well as applications

    sensitive to vibration or where fan cooling is not available.

  • Datasheets:



  • LCM1500 Series

  • The Artesyn Embedded Power LCM1500 provides a low cost solution to Industrial and Medical single output high power requirements.

  • Datasheet:

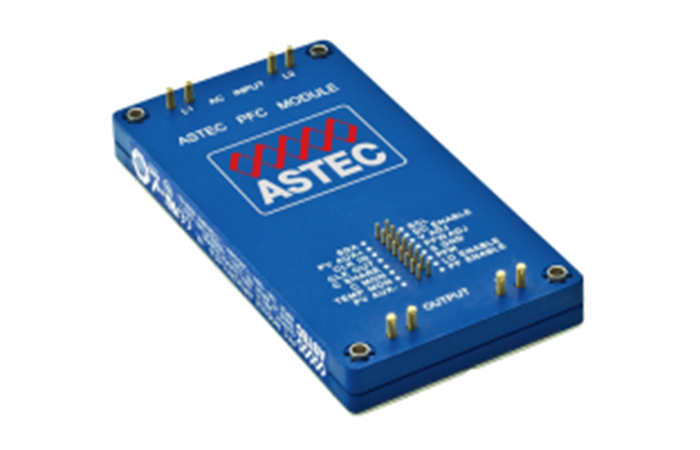

  • AIF04ZPFC Series

  • The AIF04ZPFC series full-brick power factor correction module accepts a wide 85–264 Vac input and presents a unity power factor. It can also be configured to accept a DC input within the range 120–370 Vdc.

  • Datasheet:



  • CoolX1800 Series

  • The CoolX1800 Series is the new modular power supply from Excelsys. It provides an incredible 1800W in a compact 5 x 10.5 x 1U package, typically 50% more power than the industry standard. Delivering best in class performance in efficiency and unrivalled reliability, the CoolX 1800 offers system designers the most comprehensive feature set and specifications.

  • Datasheets:



  • AIF06ZPFC Series

  • The AIF06ZPFC Series full-brick power factor correction module accepts a wide 85–264 Vac input and presents a unity power factor. Rated at 2400 watts, the module has a high conversion efficiency of 97.3% and provides a nominal non-isolated output voltage of 400 Vdc. Featuring an industry-standard 2.4 x 4.6 full-brick form factor and a height of only 0.55 inch, they have a power density of 395 watts per cubic inch.

  • Datasheet:



  • AEK-3000-HV Oring Diode Series

  • The AEK-3000-HV Series of switching Power Supplies consist of single AC-DC Converters with high output voltages ranging from 150V to 400V DC.  The AEK-3000-HV have fully enclosed cases with integrated cooling fans, compact size, and high reliability make the AE-3000-HV Series an excellent choice when a chassis mountable AC-DC Converter with high DC Output voltages in space-critical applications is required. Safety approvals and EMC fully comply with worldwide requirements.

  • Datasheet:



  • PFE3000 Series AEK-3000 Series

  • The PFE3000-12-069RA is a 3000 Watt AC/DC power-factor corrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 12 VDC or 360V DC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches.

  • Datasheets:

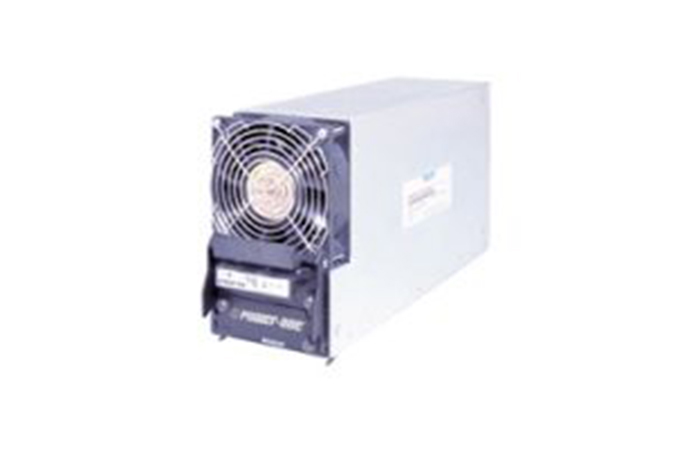

  • FXP7000 Series

  • The FXP7000 Series of rack-mounted power systems provides AC front-end capability to automatic test equipment, telecom, data communications, and other distributed power designs. The pluggable FXP supplies do not include an output isolation diode and may be paralleled up to 210 kW of total output power. These supplies provide excellent protection against input voltage transients.

  • Datasheet:



To see even more of what we have to offer across a vast range of applications, please visit www.greshampower.com
