Yet More Top Quality Power Converters From Gresham’s Unparalleled Range - Suitable For a Variety of Applications

Product

AIQ00ZPFC Series.

  • AIQ00ZPFC Series

  • The AIQ00ZPFC series quarter-brick power factor correction module accepts a 100–122 Vac input and presents a unity power factor. It accommodates AC supply frequencies in the range 360 to 800 Hz. Rated at 75 watts, the module offers a power conversion efficiency of up to 90% and provides a typical output voltage of 393 Vdc.

  • Datasheet:



  • CQB75-300S Series

  • The CQB75-300S series of DC-DC converters offer 75 watts of output power in single output voltages of 5, 12, 15, 24, 48VDC within an industry standard quarter-brick. It has a wide input voltage range of 180 to 450VDC (300VDC nominal) and 3000VAC reinforced isolation. It also has a high efficiency of up to 90%.

  • Datasheets:



  • ABC75 Series

  • The ABC75 Series of open frame power supplies feature a wide universal AC input range of 85 V to 264 VAC, offering 75 W of output power in a compact 3 x 2 x 1 inch footprint, with a variety of isolated single output voltages.

  • Datasheet



  • LGA 50D Series

  • The LGA50D is a non-isolated DC-DC converter that is designed for cost and space sensitive applications.This non-isolated unit offers two independent and configurable 25 amp, 50 watt outputs, which can also be combined to a single configurable 50 amp, 100 watt output. With a footprint of 1 x 0.5 inches or 25.4 x 12.5 mm.

  • Datasheet:



  • CFM150S Series



  • AIT00ZPFC Series

  • The AIT00ZPFC series of three-quarter-brick power factor correction modules accept a 100–122 Vac input and present a unity power factor.They accommodate AC supply frequencies of 50 Hz, 60 Hz or 360–800 Hz, and a DC input version is also available. Rated at 150 watts, the modules have a high conversion efficiency of 91% and provide a typical output voltage of 393 Vdc

  • Datasheet:



  • CHB150W12 Series

  • The CHB150W12 series of DC-DC converters offers 150 watts of output power in single output voltages of 5,12, 15, 24, 48VDC. The CHB150W12 series come in industry standard Half-brick format with a wide (12:1) input voltage range of 14 to 160VDC (72VDC nominal) and 3000VAC reinforced isolation.

  • Datasheets:

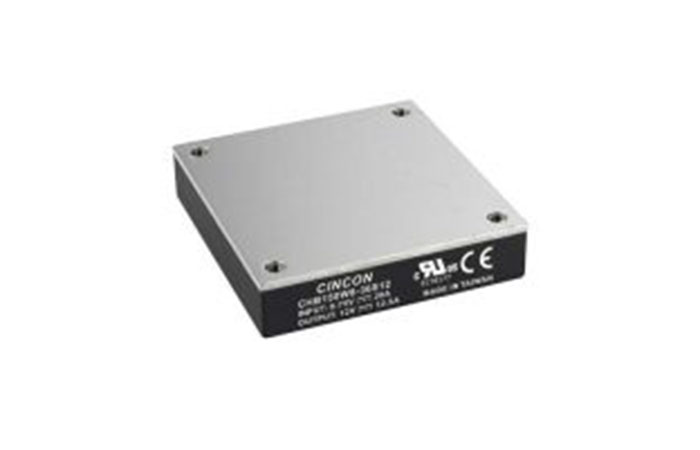

  • CHB150W8 Series

  • The CHB150W8 Series offers 150 watts of output power with high power density in an industry standard half-brick package. The CHB150W8 series is wide (8:1) input voltage range of 9-75VDC (covering 12V, 24V and 48V battery voltages) and provides a precisely regulated output.

  • Datasheets:



To see even more of what we have to offer across a vast range of applications, please visit www.greshampower.com
