More Choice from Gresham Power Electronics Industrial Power Supplies Range

Product

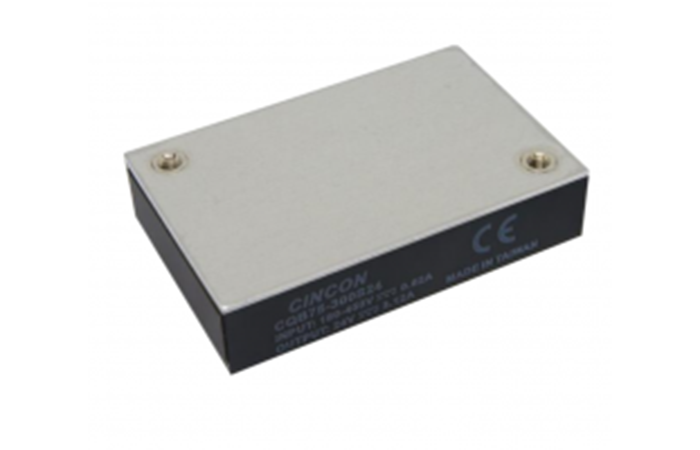

CQB75-300S Series.

  • CQB75-300S Series

  • The CQB75-300S series of DC-DC converters offer 75 watts of output power in single output voltages of 5, 12, 15, 24, 48VDC within an industry standard quarter-brick. It also has a high efficiency of up to 90%.

  • Datasheets:

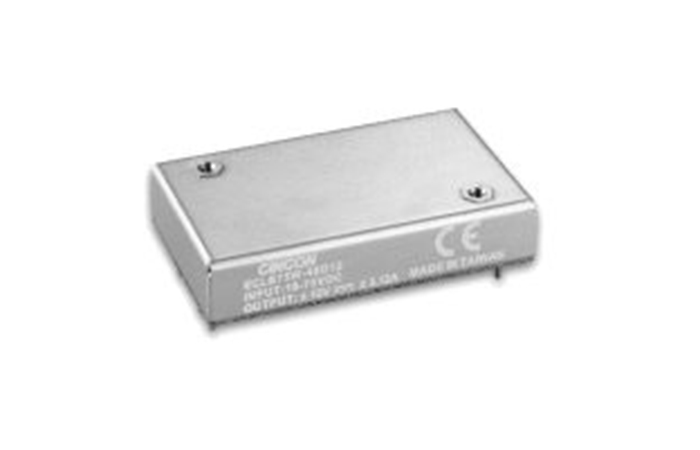

  • ECLB-75W Series

  • The ECLB75W series offer 75 watts of output power in a 2.05 x 1.20 x 0.4 inches copper packages. The ECLB75W series has a 4:1 wide input voltage range of 9-36 and 18-75VDC, and provides a precisely regulated output.

  • Datasheets:



  • CQB75W8 Series

  • The CQB75W8 series of DC-DC converters have a wide (8:1) input voltage range of 9 to 75VDC (36VDC nominal) covering 12V, 24V and 48V battery systems, and have 3000VAC reinforced isolation as standard.

  • Datasheets:

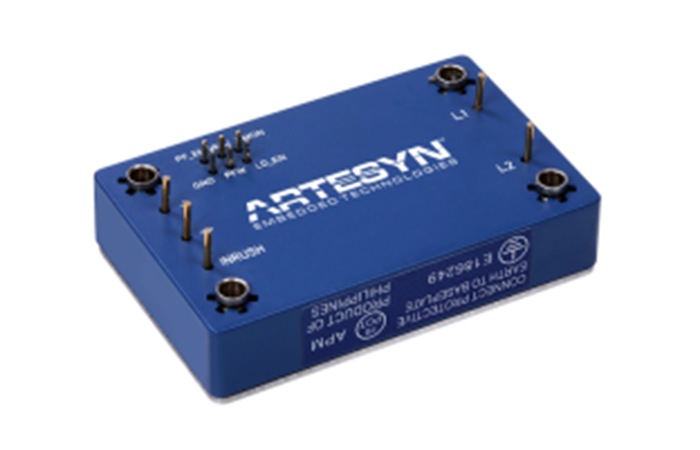

  • AIQ00ZPFC Series

  • The AIQ00ZPFC series quarter-brick power factor correction module accepts a 100–122 Vac input and presents a unity power factor. It accommodates AC supply frequencies in the range 360 to 800 Hz. Rated at 75 watts, the module offers a power conversion efficiency of up to 90% and provides a typical output voltage of 393 Vdc.

  • Datasheet:



  • ABC75 Series

  • The ABC75 Series of open frame power supplies feature a wide universal AC input range of 85 V to 264 VAC, offering 75 W of output power in a compact 3 x 2 x 1 inch footprint, with a variety of isolated single output voltages.

  • Datasheet



  • CQb100W Series

  • The CQB100W series are highly efficient, reliable and compact, high power density, single output DC/DC converters. The modules can be used in the field of telecommunications, data communications, wireless communications, servers etc. The CQB100W series can deliver up to 30A output current and provide a precisely regulated output voltage over a wide range of input voltages (Vi=9-36Vdc or Vi=18-75Vdc).

  • Datasheets:

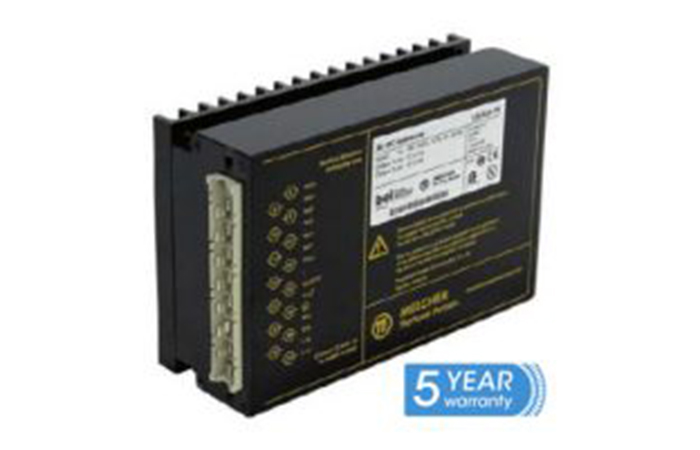

  • S Series (dc)



  • S Series (ac)



To see even more of what we have to offer across a vast range of applications, please visit www.greshampower.com
