Gresham

Greshams’ Industrial Power Supplies Range Just Got Even Bigger!

Product

CHB50W Series.

  • CHB50W Series

  • Highly efficient, reliable and compact, high power density, single output DC/DC converters. The CHB50W can be used in the field of telecommunications, data communications, wireless communications, servers etc.

  • Datasheets:



  • CQB50W12 Series

  • The CQB50W12 series of DC-DC converters offers 30- 50 watts of output power @ single output voltages of 5, 12, 24, 48VDC with industry standard quarter-brick. It has a wide (12:1) input voltage range of 14 to 160VDC (72VDC nominal) and 3000VDC basic isolation. Compliant with EN50155, EN45545, EN50121-3-2.

  • Datasheets:



  • 0RQB-50Yx Series

  • The 0RQB-50Y05L is an isolated DC/DC converter providing 50 W of output power from a wide input range (24 V,48 V,72 V,96 V,110 V typical). Standard features include remote on/off, input under voltage protection, output over-voltage protection, over current and

    • short circuit protection.

  • Datasheets:

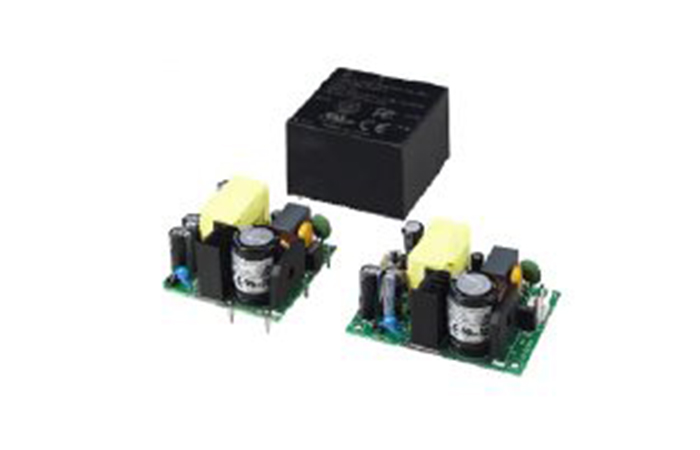

  • CFM4060S Series

  • The CFM40 & CFM60 series is a compact and efficient series of ac dc power supply suited for telecom datacom and many other applications. The CFM40 & CFM60 family meets the international information technology safety standards with the CE-Mark for the European Low Voltage Directive (LVD).

  • Datasheet:



  • ECLB-60W Series

  • The ECLB60W series offer 60 watts of output power in a 2.05×1.20×0.4 inches copper packages. The ECLB60W series has a 4:1 wide input voltage range of 9-36 and 18-75VDC, and provides a precisely regulated output.

  • Datasheets:



  • XRCM60 Series

  • The Melcher XRCM60 Series Converters are reliable Power Supplies for Railway & Transportation Systems.

  • Datasheet:



  • CFM61S Series

  • The CFM61 series is a compact and efficient series of ac dc power supply suited for telecom datacom and many other applications. The CFM61 family meets the international information technology safety standards with the CE-Mark for the European Low Voltage Directive (LVD).

  • Datasheets:



  • CQB60W-110S Series

  • The CQB60W-110S series offers 60 watts of output power with high power density in an industry standard quarter-brick package. The CQB60W-110S series is wide (4:1) input voltage range of 43-160VDC and provides a precisely regulated output. This series has features such as high efficiency, 3000VDC isolation and a case operating temperature range of -40°C to 105°C. The modules are fully protected against input UVLO (under voltage lock out), output short circuit, output overvoltage and over temperature conditions. Furthermore, the standard control functions include remote on/off and output voltage trimming. All models are highly suited to telecommunications, distributed power architectures, industrial, railway system, and mobile equipment applications.

  • Datasheets:



  • PSA Series

  • The Melcher PSR & PSA series switching regulators by Bel Power are ideal converters for harsh environments, or applications where high reliability and efficiency are essential. Typical applications include railways, military, industrial, telecoms as well as more general transportation applications.

  • Datasheet:

To see even more of what we have to offer across a vast range of applications, please visit www.greshampower.com
