Economical alternative

Monash University scientists have developed a new type of fuel cell in which a specially coated form of a popular high-tech outdoor and sporting clothing material is the key component.

The team of Monash scientists have designed and tested an air-electrode, where a fine layer - just 0.4 of a micron thick - of highly conductive plastic is deposited on breathable Goretex fabric. The conductive plastic acts as both a fuel cell electrode and catalyst.

Monash University's Dr Bjorn Winther-Jensen said just as Goretex had revolutionised the outdoor clothing industry, it could hold similar promise for motorists.

He said: 'The same way as waste vapour is drawn out of this material to make hikers more comfortable and less prone to hypothermia, so it is able to 'breathe' oxygen into our fuel cell and into contact with the conductive plastic.'

Monash University's Prof Doug MacFarlane from the Australian Centre for Electromaterials Science (ACES) said the discovery was probably the most important development in fuel cell technology in the last 20 years.

He said: 'The benefits for the motoring industry and for motorists are that the new design removes the need for platinum, which acts as the catalyst and is currently central to the manufacturing process.'

MacFarlane added: 'Our reliance on platinum is making the likelihood of using fuel cells in everyday passenger cars increasingly improbable. The cost of the platinum component alone of current fuel cells for a small car with a 100kW electric engine is more than the total cost of an 100kW gasoline engine. Also current annual world production of platinum is only sufficient for about 3m 100kW vehicles, less than one-twentieth of the current annual global production of vehicles.'

The new design fuel cell has been tested for periods of up to 1,500 hours continuously, using hydrogen as the fuel source.

Prof Maria Forsyth, director of ACES at Monash, said testing had shown no sign of material degradation or deterioration in performance. The tests also confirmed that oxygen conversion rates are comparable with platinum-catalysed electrodes of the same geometry and found electrodes are not poisoned by carbon monoxide the way platinum is.

She said: 'The small amounts of carbon monoxide that are always present in exhausts from petrol engines are a real problem for fuel cells because the platinum catalyst is slowly poisoned, eventually destroying the cell.'

'The important point to stress is that the team has come up with an alternative fuel cell design that is more economical, more easily sourced, outlasts platinum cells and is just as effective.'

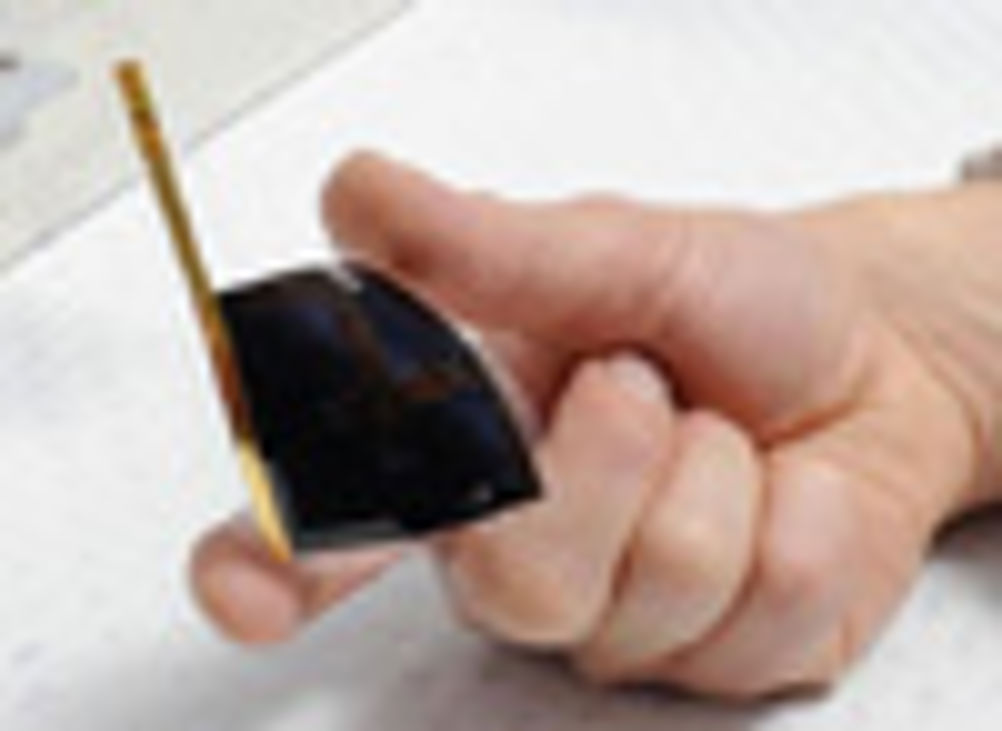

Flexible fuel cell. Photo courtesy of Julie Fraser, Faculty of Engineering
