Oil-filled, multiple disc, hydraulically actuated self-adjusting clutch

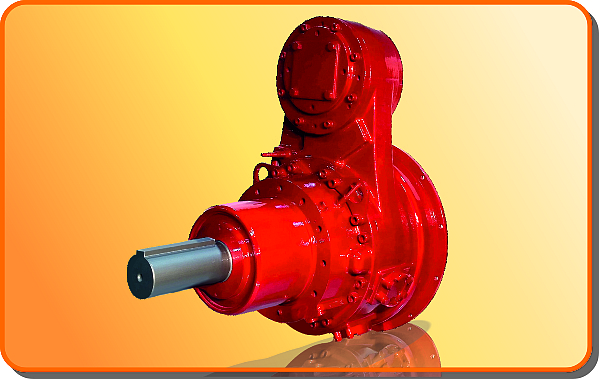

The HP500 is an oil-filled, multiple disc, hydraulically-actuated self-adjusting clutch. The HP500 has been developed with a number of unique features that offer reliability, productivity and power. The HP500 has been designed for a wide range of heavy-duty applications including crushers, grinders, mulchers, dredgers, heavy-duty drills and many others.

It has a range of features including hydraulically actuated and self-adjusting wet clutch, suitable for in-line and side-load applications, advanced control system for smooth engagement, high side load capability, and more.

» Maximum power rating 373 kW (500 hp) @ 1800 rpm.

» Optional single tower (2-pads) or two tower (4-pads) auxiliary drive.

» 298 kW (400 hp) maximum capacity per tower.

» 336 kW (450 hp) maximum capacity for both towers.

Available pump pads:

» SAE "A" • SAE "B" • SAE "C" • SAE "D" • SAE "E" .

» Pump tower rotatable by 0°/45°/90° CW/CCW.

» 1:1 standard with optional 0.83:1 & 0.77:1 speed increase on pump tower.

» SAE 1, SAE 2 & SAE 3 input housing.

» SAE 14, SAE 11.5 & SAE 10 input coupling.
