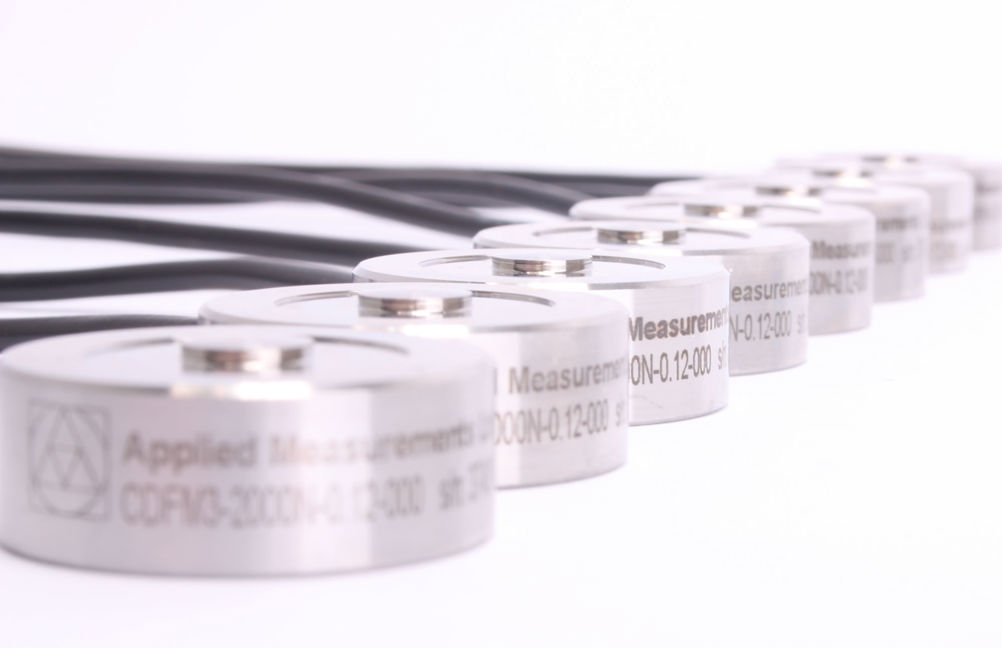

Running out of room? Try Applied Measurements’ CDFM3 Miniature Button Load Cell
Very Compact
Ideal for retrofitting
Integral load button
Perfect when space is limited
Only 12mm in height
Capacities from 100N up to 20kN
At only 12mm in height and 30mm diameter this ultra-compact miniature button load cell is perfect for compression measuring where space is limited. Its centralised integral load button guarantees optimum performance from the load cell.
Thanks to its compact size it is ideal for retrofitting into your existing machinery, saving you installation time. Its miniature size also means it can be easily incorporated into new machine designs.
With capacities from 100N up to 20kN this is the second smallest standard button load cell we offer. If you need an even smaller button load cell we have a CDFM3 which is only 8mm in height.
