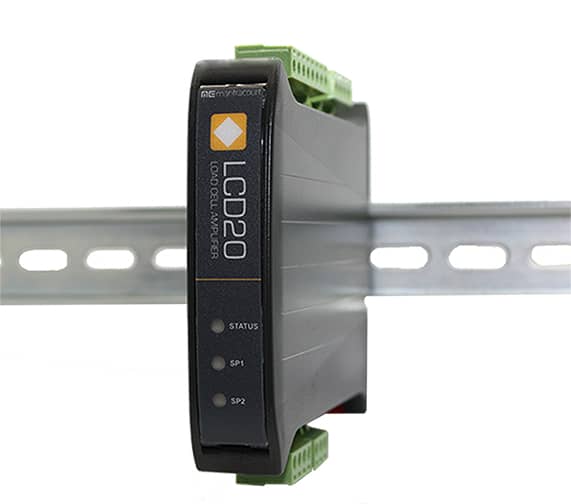

The LCD20 DIN rail strain gauge amplifier microprocessor delivers smarter automation and control for process applications. Along with its small and stackable design, the amplifier also comes with two part screw connectors enabling easy and tidy mounting where space is limited.
The microprocessor based amplifier is compatible with a wide range of load cells, pressure or strain gauges and other ratiometric sensors with a wide range of sensitivities. The unit is powered from a wide 9-32V DC supply and provides 4-20mA and 0-10 V standard analogue outputs. In addition, it features two digital inputs and supports a six-wire input which compensates for any barrier and/or cable losses.
For more information, click here.
