Computation software helps develop model of ultrasonic motor for controller design

screen-shot-2016-11-11-at-14-49-21

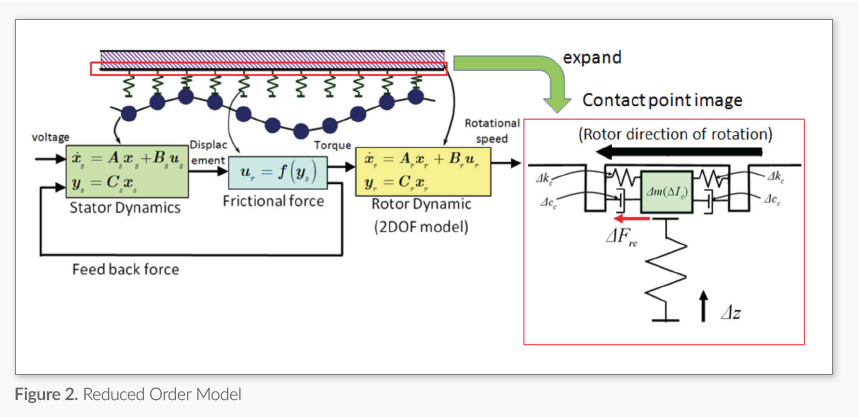

Ultrasonic motors, used in cameras and other applications, present unique modelling challenges. The phenomena created in which ultrasonic waves with high frequencies are produced are difficult to capture in a model. The model must be accurate and execute quickly to be useful for controller design. Current modeling techniques have drawbacks. However, the use of a Reduced Order Model created by Model Order Reduction of a Finite Element Model has shown great benefits. With help from Maple’s advanced calculation capabilities:

the complex modeling challenges were alleviated

an accurate model of a USM was created

the model was created within a fraction of the time previously required with other modeling techniques
