Mecmesin’s CFG+ digital force gauge represents an extremely affordable alternative to mechanical gauges and features an accuracy of ±0.5% of full-scale.
There are 3 models available with maximum capacities of 50, 200 and 500 N.
A clear simple LCD display shows readings in the most common measurement units (N, kN, mN, gf, kgf, lbf and ozf). Values are shown as continuously changing ‘live’ or frozen in the display to capture the peak reading.
Manufactured in a lightweight ABS plastic housing, the CFG+ has a simple keypad and comes equipped with RS232 output for easy data transmission.

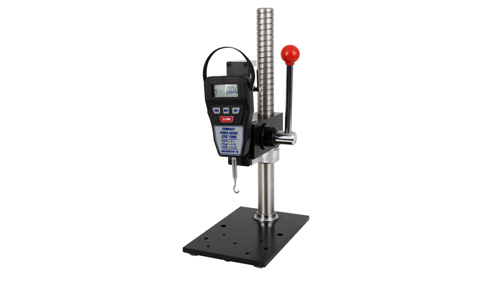

Its primary use is as a hand-held device but it’s design makes it attachable to manual test stands for more controlled testing. An overload warning function, to reduce the risk of accidental damage to the instrument by an operator, is standard on all models.

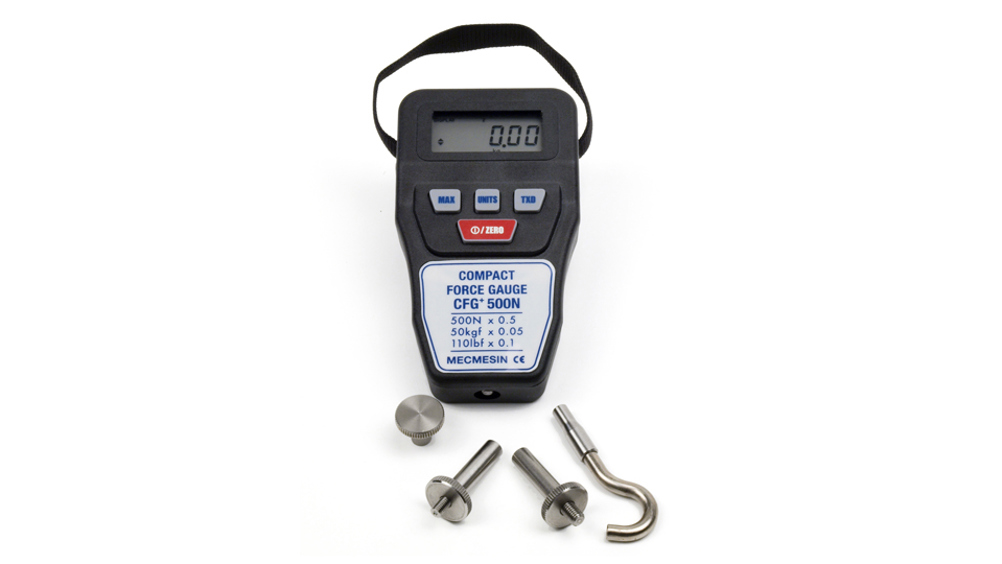

Powered by disposable AA batteries, the CFG+ comes with basic accessories for tension and compression testing. A declaration of conformity is supplied as standard with a calibration certificate available for a small additional fee.
For more information visit https://www.mecmesin.com/digital-force-gauges/digital-force-gauge?model=Compact
Or contact PPT Group UK Ltd t/a Mecmesin
T: +44 (0) 1403 799979
E: info@mecmesin.com
