FLIR has introduced a combination of measures to cut inspection time of energised electrical equipment. The AX8 thermal sensor allows the continuous monitoring of critical electrical infrastructure and the FLIR IRW Windows provide an easy and affordable option that reduce the cost and time associated with thermal inspection and add a safety barrier to protect the thermographer from arc flash accidents.
Easy-to-install thermal imager for continuous condition monitoring
The FLIR AX8 is a temperature sensor with thermal imaging capabilities, combining thermal and visual cameras into a compact, affordable package. The sensor provides continuous temperature monitoring and automated alarming when pre-set temperature thresholds are exceeded. It is designed to guard against unplanned outages, service interruptions and equipment failure.
Measuring only 54 x 25 x 95mm, the AX8 is easy to install in tight spaces and consumes little power. It allows the user to view thermal images, visible light images, or the two combined thanks to FLIR’s proprietary MSX® multispectral imaging capability. MSX provides image detail from the visible camera that is embedded onto the thermal image, giving exceptional image clarity and the ability to read labels. Overall it helps to put the problem in context for quicker diagnosis.
Enabled by FLIR’s ground-breaking Lepton® thermal imaging core, the AX8 has 4,800 active temperature points per image, provides streaming temperature data over industry-standard interfaces (Ethernet/IP and Modbus TCP) for easy analysis, has a built-in web interface, and includes a full suite of analysis functions.
The AX8 easily integrates into electrical installations or indeed any manufacturing environment. Its streaming thermal, visual, and MSX video is output in standard MJPEG, MPEG, H.264 formats, adding multipurpose image capabilities.
Safer, more efficient electrical IR inspection

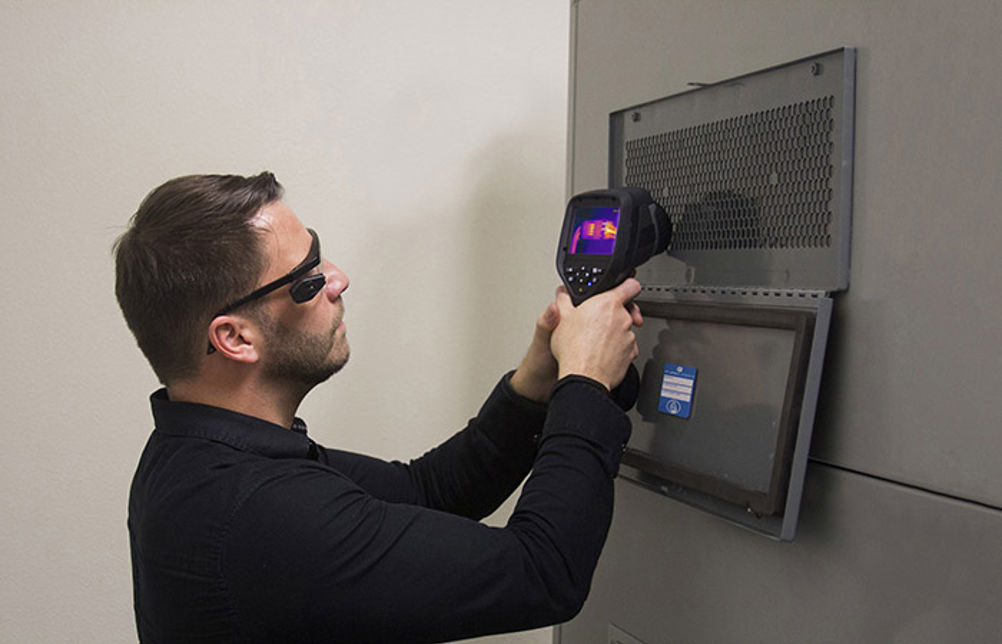

Inspection via IR windows requires the involvement of fewer personnel and eliminates the need for cumbersome PPE. In short, IR windows offer considerable potential for exposing faults before they become costly failures, saving costs in the process without compromising personnel safety.
Although primarily designed for use with the entire range of FLIR thermal imaging cameras, the FLIR IRW-Series of IR inspection windows can be used with any camera brand. Indeed, they bring important benefits to the market irrespective of the camera used, the most important being robust design and simple installation.
FLIR IRW windows feature a permanent hinged cover that flips open easily, so there’s nothing to drop, mix up or lose. The range provides a choice between standard, anti-corrosion, anodized aluminium frames or durable stainless steel if there are mixed metal concerns.
For more information on FLIR’s cabinet monitoring solutions download the brochure at: FLIR/Inspect&Monitor
