Analog Devices’ Integrated Isolated RS485 + Isolated Power Transceivers Reduce Design Time

Analog Devices, Inc. (ADI) has introduced the ADM2867E series of reinforced iCoupler® isolated RS485 + integrated isolated dc-to-dc converters. These new parts provide low radiated emissions and enable solutions that meet EMC compliance with fewer board spins and budget overruns. The transceivers’ simplified PCB layout and small SOIC form factor pack more functionality into space constrained applications than the previous generation as well as current products offered by competitors.

• Download data sheet, order samples and evaluation boards: https://www.analog.com/en/products/adm2867E.html
• Connect with engineers and ADI product experts on EngineerZone®, an online technical support community: https://ez.analog.com/interface-isolation
• Find application notes and technical articles about digital isolation technology from ADI:https://www.analog.com/en/products/interface-isolation/isolation.html

This isolated RS485 + integrated isolated power transceiver series includes smart features that reduce end system install and debug time allowing for easy correction of installation-based connection errors. With the trusted safety of iCoupler digital isolation and IEC 61000-4-2 ESD, signal integrity is maintained in the harshest of environments.

ADM2867E Key Features

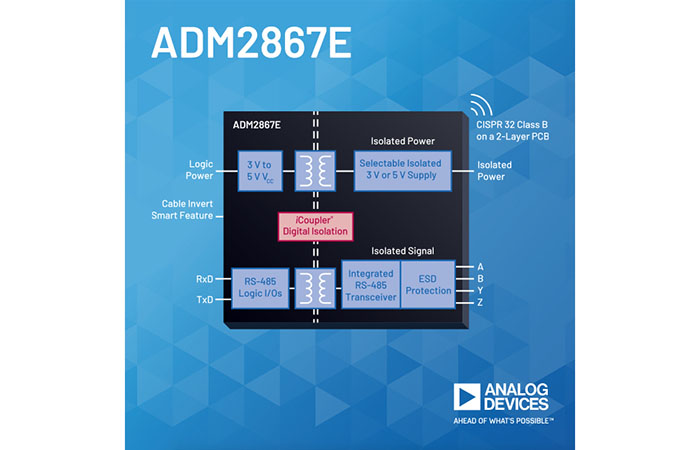

• 5.7 kV rms isolated full duplex RS-485/RS-422 transceiver with 8mm creepage
• Margin to CISPR32 Class B emissions on a 2-layer PCB without stitching capacitance
• Cable invert smart feature correct reversed cable connections while maintaining full receiver fail-safe feature
• Flexible supply rails with low voltage to interface to FPGAs and microprocessors and PROFIBUS support with a 5V isolated supply

Pricing and Availability

Duplex

Availability

Production

Per 1,000

About Analog Devices

Analog Devices is a leading global high-performance analogue technology company dedicated to solving the toughest engineering challenges. We enable our customers to interpret the world around us by intelligently bridging the physical and digital with unmatched technologies that sense, measure, power, connect and interpret. Visit http://www.analog.com.
