The research, conducted by a team from the US Energy Department's National Renewable Energy Laboratory (NREL) and SLAC National Accelerator Laboratory, is described in a paper titled: The formation mechanism for printed silver-contacts for silicon solar cells, which appears in Nature Communications.
The paste used in the manufacturing of the solar cells contains silver powder, glass frit (a mixture of metal oxides including lead oxide, boron oxide, zinc oxide, and bismuth oxide), and an organic binder. Researchers are looking for an alternative because silver is costly and lead oxide in the glass frit can harm the environment. Before alternative materials can be chosen, however, a better understanding is needed of what takes place during the firing process.
According to NREL, the research focused on identifying the silver-contact reaction mechanism that occurs during the manufacturing of silicon-based photovoltaic cells. The process involves a silver paste screen-printed onto a silicon wafer and then fired in a belt furnace at temperatures between 750-800 degrees Celsius. The process has been used for decades in silicon solar cell manufacturing, but exactly what happens during the firing step has remained unknown because the firing process happens in seconds.
By focusing an X-ray beam onto the silver paste during the contact formation, the researchers were reportedly able to capture the chemical and physical changes to the solar cell and the silver paste during the firing process and use those data to create a better picture of what happens. They first, however, had to design and build a rapid thermal processing instrument to allow for real-time collection of X-ray data during firing. The portable instrument, developed jointly by NREL and SLAC, in combination with the synchrotron at SLAC, allows X-ray spectra to be taken in 100-millisecond intervals as the temperature is increased up to 100 degrees Celsius per second. The instrument works in temperatures as high as 1,200 degrees Celsius.

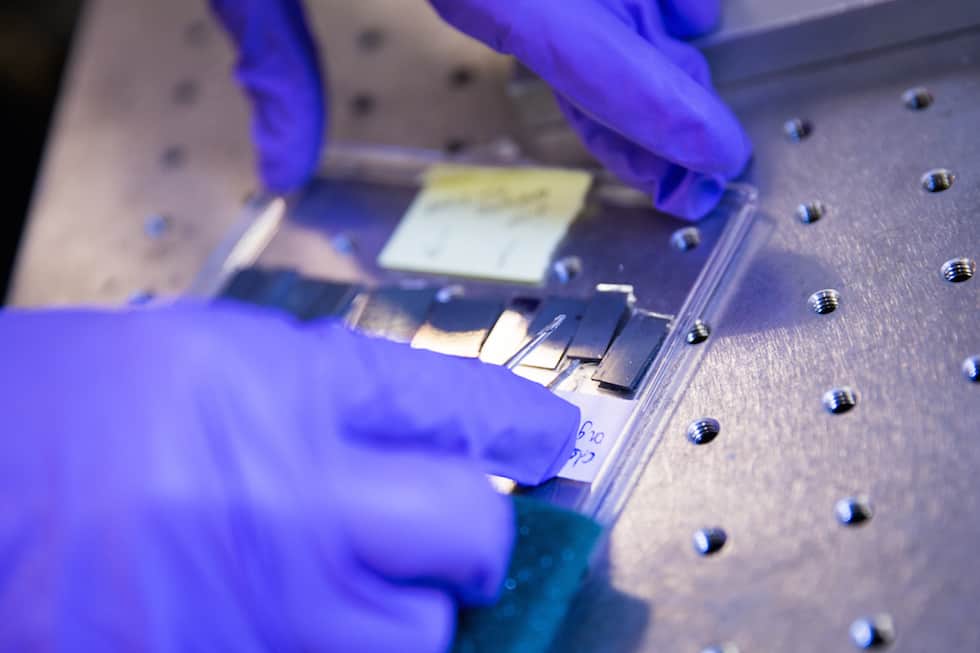

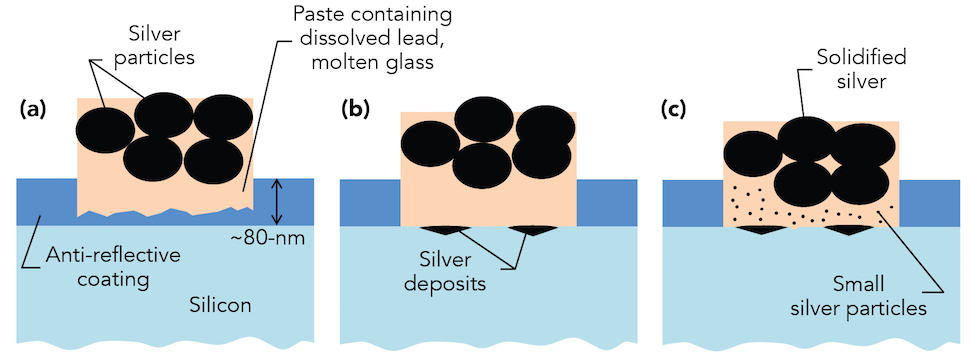

Use of the X-rays allowed researchers to learn that between 500-650 degrees Celsius, the antireflective coating on the solar cell is etched by lead oxide in the frit, allowing the frit to contact the silicon. Above 650 degrees, the silver dissolves into the molten glass frit and interacts at the silicon surface. On cooling, the silver precipitates and solidifies in the glass frit, allowing electrical contact to the silicon.
The researchers tested the difference in solar cells made in a furnace filled with nitrogen versus oxygen. The firing process using nitrogen resulted in the formation of more metallic lead, reducing the solubility of silver in the molten glass. In the presence of oxygen, silver dissolved readily into the glass when temperatures are higher than 650 degrees Celsius, causing more silver to eventually end up at the silicon surface and in turn forming a better contact.
