A measurement method developed by researchers working at the National Institute of Standards and Technology (NIST) uses the shadow cast by a small glass probe to infer the dimensions of tiny, microscale holes or other micrometre-sized components.
The technique may provide an improved quality control method for measuring the interior dimensions of fuel nozzles, fibre optic connectors, biomedical stents, ink jet cartridges and other precision-engineered products.
Designed to be implemented with the type of coordinate measuring machine (CMM) routinely used in precision manufacturing settings, the method uses a flexible glass fibre with a microsphere attached on one end.
The glass probe is attached to the CMM's positioning system, inserted into the part to be measured, and systematically touched to the part's interior walls in multiple locations. A light-emitting diode is used to illuminate the glass fibre. While the microsphere inside the part is not visible, the shadow of the attached fibre - with a bright band of light at its centre - shows the amount of deflection in the probe each time the part's interior is touched. A camera records the shadow positions.
Based on prior calibration of the force required to bend the probe a specific distance, the part's dimensions can be determined with an uncertainty of about 35 nanometres (nm). The method can be used for holes as small as 100 micrometres in diameter.
"Our probe has a much smaller measurement uncertainty than other available methods and it is very cost effective to make," says Bala Muralikrishnan, a NIST guest researcher from the
The thin, glass fibre is about 20 millimetres long and 50 micrometres in diameter, making it especially useful for measuring relatively deep holes not easily measured with other methods. Replacement probes cost about $100 compared to about $1,000 for those manufactured using silicon micromachining techniques.

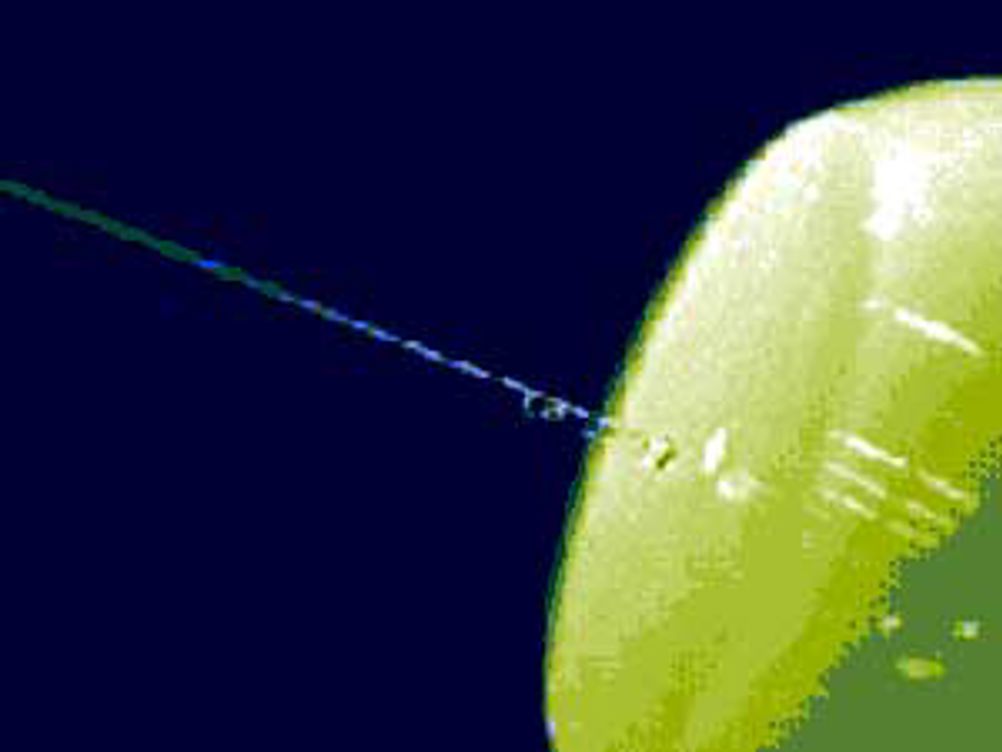

NIST researchers and collaborators have developed a new method for measuring the interior dimensions of small holes with an uncertainty of only 35 nanometres. Here, a glass probe is inserted into an optical "ferrule," a device for connecting optical fibres used in communications systems.
