Novel electrodes improve lithium-ion batteries

Writing in Nature Communications, the scientists describe a new technique for producing low-cost, silicon-based batteries with potential applications for a wide range of electrical devices.

‘Developing rechargeable lithium-ion batteries with high energy density and long cycle life is of critical importance to address the ever-increasing energy storage needs for portable electronics, electric vehicles and other technologies,’ said study co-author Zhenan Bao, a professor of chemical engineering at Stanford.

To find a practical, inexpensive material that increases the storage capacity of lithium-ion batteries, Bao and her Stanford colleagues turned to silicon.

‘We’ve been trying to develop silicon-based electrodes for high-capacity lithium-ion batteries for several years,’ said study co-author Yi Cui, an associate professor of materials science and engineering at Stanford. ‘Silicon has 10 times the charge storage capacity of carbon, the conventional material used in lithium-ion electrodes. The problem is that silicon expands and breaks.’

Studies have shown that silicon particles can undergo a 400-per cent volume expansion when combined with lithium. When the battery is charged or discharged, the bloated particles tend to fracture and lose electrical contact. To overcome these technical constraints, the Stanford team used a fabrication technique called in situ synthesis polymerization that coats the silicon nanoparticles within the conducting hydrogel.

This technique allowed the scientists to create a stable lithium-ion battery that retained a high storage capacity through 5,000 cycles of charging and discharging.

‘We attribute the exceptional electrochemical stability of the battery to the unique nanoscale architecture of the silicon-composite electrode,’ Bao said in a statement.

Using a scanning electron microscope, the scientists discovered that the porous hydrogel matrix is riddled with empty spaces that allow the silicon nanoparticles to expand when lithium is inserted. This matrix also forms a three-dimensional network that creates an electronically conducting pathway during charging and discharging.

‘It turns out that hydrogel has binding sites that latch onto silicon particles really well and at the same time provide channels for the fast transport of electrons and lithium ions,’ said Cui, a principal investigator with the Stanford Institute for Materials and Energy Sciences at the SLAC National Accelerator Laboratory. ‘That makes a very powerful combination.’

A mixture of hydrogel and silicon proved far less effective than the in situ synthesis polymerization technique.

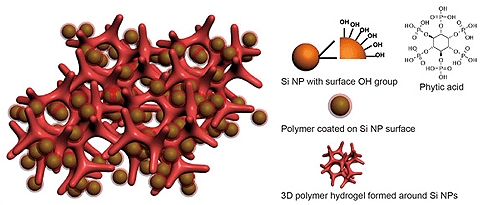

‘Making the hydrogel first and then mixing it with the silicon particles did not work well,’ Bao said. ‘It required an additional step that actually reduced the battery’s performance. With our technique, each silicon nanoparticle is encapsulated within a conductive polymer surface coating and is connected to the hydrogel framework. That improves the battery’s overall stability.’

Hydrogel primarily consists of water, which can cause lithium-ion batteries to ignite – a potential problem that the research team had to address. ‘We utilized the three-dimensional network property of the hydrogel in the electrode, but in the final production phase, the water was removed,’ Bao said. ‘You don’t want water inside a lithium-ion battery.’

Although a number of technical issues remain, Cui is optimistic about potential commercial applications of the new technique to create electrodes made of silicon and other materials.
