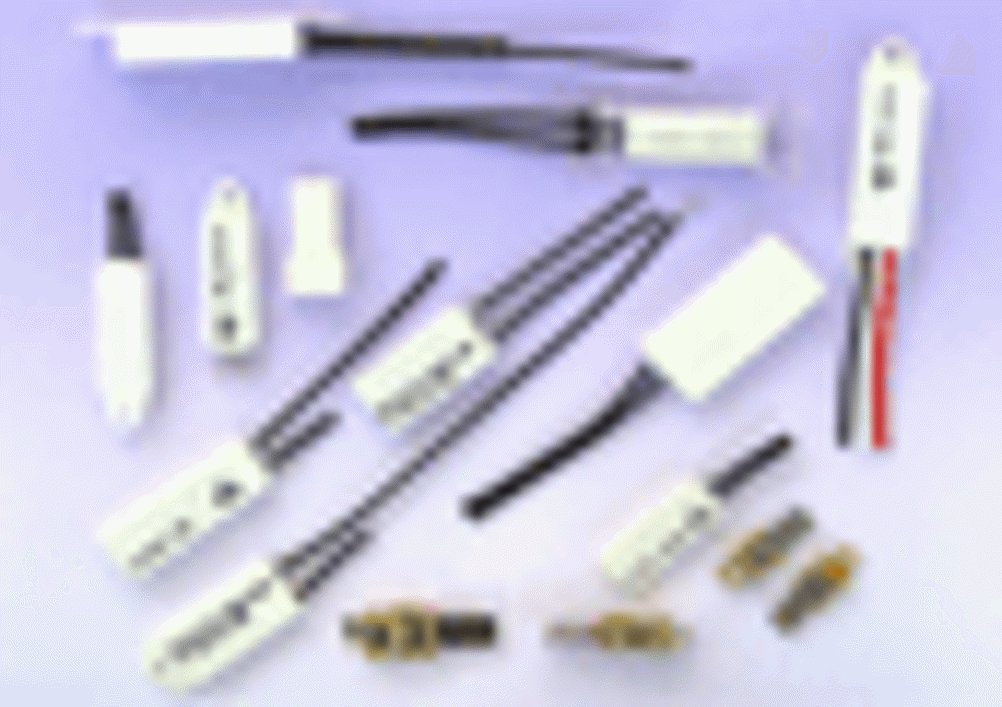

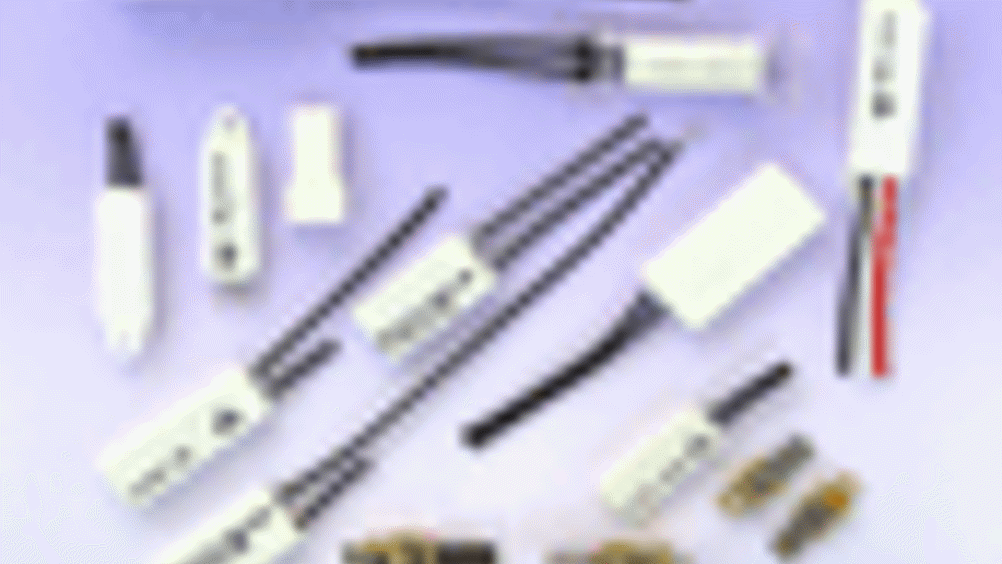

Long-life, Precision Thermostats

The unique twin-bimetal system of a Matsuo thermostat creates a control that over its long cycle-life, helps to minimises drift and deviation.  By avoiding pre-stressed bi-metal, the MQT & M3 series thermostats are capable of switching over 1 million cycles with accuracies as little as ±1.5K and differentials down to 3K±1K.  Thus very accurate, long-term control can be guaranteed.



Calibrations from -10°C to +110°C and loads upto 3A/250VAC (0.8A/48VDC)

can be switched in the PBT-encapsulated designs.  N/O, N/C and “change-over” (S.P.D.T.) contacts and various termination options make for a very flexible end product. Built-in thermal fuses and resistors help to create an ultimate safety control or even a variable thermostat.
