Laser-illuminated microscopy could see 10nm objects

It is claimed the advance represents a practical tool for biomedical and nanotechnology research.

‘Super-resolution optical microscopy has opened a new window into the nanoscopic world,’ said Ji-Xin Cheng, an associate professor of biomedical engineering and chemistry at Purdue University.

Conventional optical microscopes can resolve objects no smaller than about 300nm, a restriction known as the diffraction limit, which is defined as half the width of the wavelength of light being used to view the specimen.

However, researchers want to view molecules such as proteins and lipids, as well as synthetic nanostructures like nanotubes, which are a few nanometres in diameter.

Such a capability could bring advances in a diverse range of disciplines, from medicine to nanoelectronics, Cheng said.

‘The diffraction limit represents the fundamental limit of optical imaging resolution,’ Cheng said in a statement. ‘Stefan Hell at the Max Planck Institute and others have developed super-resolution imaging methods that require fluorescent labels.

‘Here, we demonstrate a new scheme for breaking the diffraction limit in optical imaging of non-fluorescent species. Because it is label-free, the signal is directly from the object so that we can learn more about the nanostructure.’

Findings are detailed in a research paper that appeared online in the journal Nature Photonics.

The imaging system, dubbed saturated transient absorption microscopy (STAM), uses a trio of laser beams, including a doughnut-shaped laser beam that selectively illuminates molecules.

According to the University, electrons in the atoms of illuminated molecules are kicked temporarily into a higher energy level and are said to be excited, while the others remain in their ground state. Images are then generated to compare the contrast between the excited and ground-state molecules.

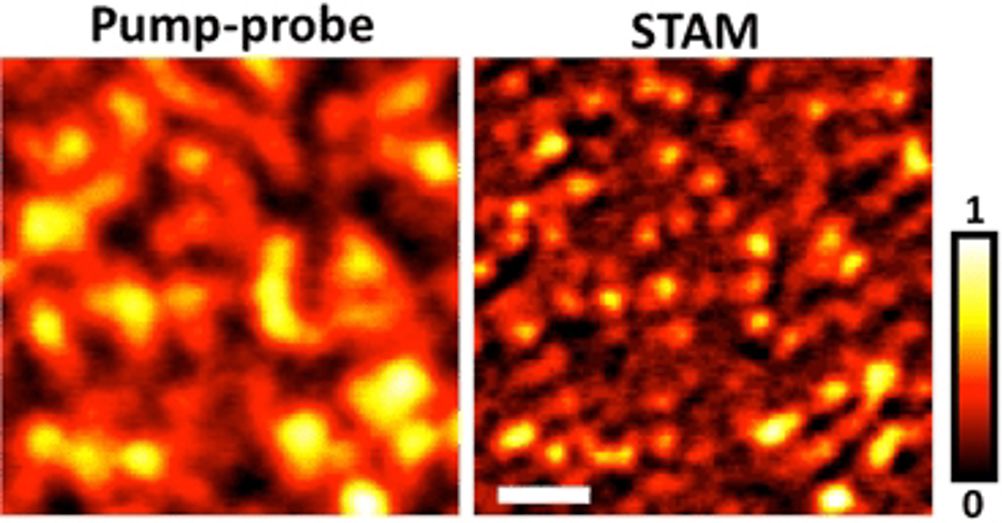

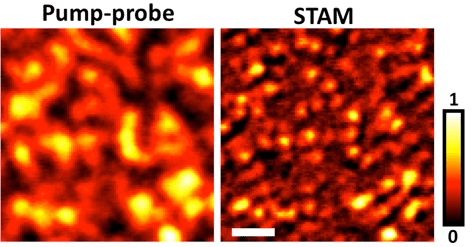

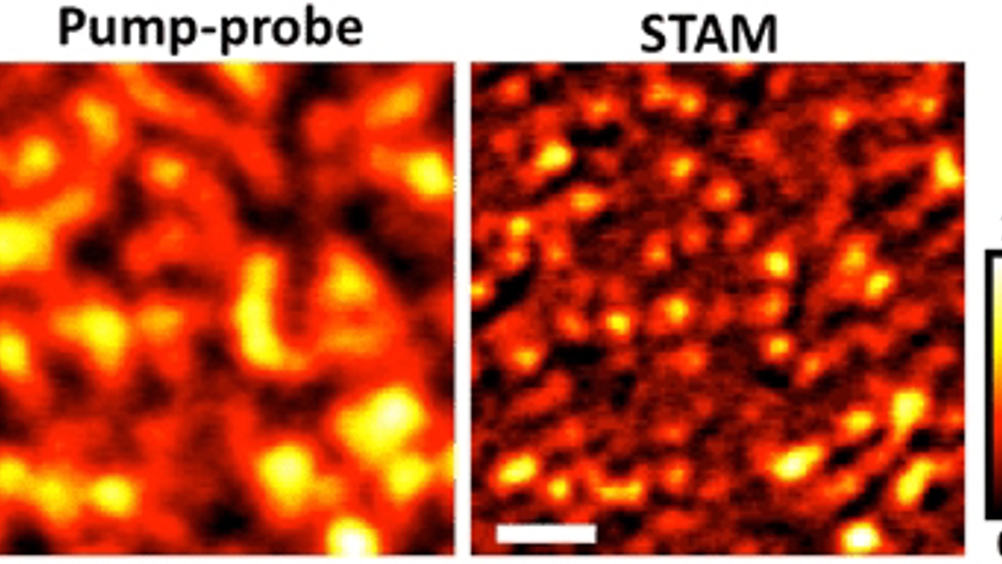

The researchers demonstrated the technique, taking images of graphite nanoplatelets about 100nm wide.

‘It’s a proof of concept and has great potential for the study of nanomaterials, both natural and synthetic,’ Cheng said.

The doughnut-shaped laser excitation technique, invented by researcher Stefan Hell, makes it possible to focus on yet smaller objects. Researchers hope to improve the imaging system to see objects about 10nm in diameter, or about 30 times smaller than possible using conventional optical microscopes.

‘We are not there yet, but a few schemes can be applied to further increase the resolution of our system,’ Cheng said.

The work will be discussed during the third annual Spectroscopic Imaging: A New Window into the Unseen World workshop on May 23 and 24 at Purdue. More workshop information is available here.
