Incredible bulk

Materials researchers at the Materials Research Institute at Penn State University have reported the highest known breakdown strength for a bulk glass ever measured.

Breakdown strength, along with dielectric constant, determines how much energy can be stored in an insulating material before it fails and begins to conduct electricity.

A bulk glass with high breakdown strength and high dielectric constant would make an ideal candidate for the next generation of high-energy density storage capacitors to power more efficient electric vehicles, as well as other portable and pulsed power applications.

The highest dielectric breakdown strengths for bulk glasses are typically in the 4-9MV/cm range. The breakdown strength for the Penn State samples were in the 12MV/cm range, which in conjunction with a relatively high permittivity, resulted in energy densities of 35J/cm3, as compared to a maximum energy density of 10J/cm3 for polypropylene, the most common dielectric for pulsed power applications.

'For a bulk glass, this is extraordinary,' said Nick Smith, a PhD candidate in materials science and engineering at Penn State who performed the testing.

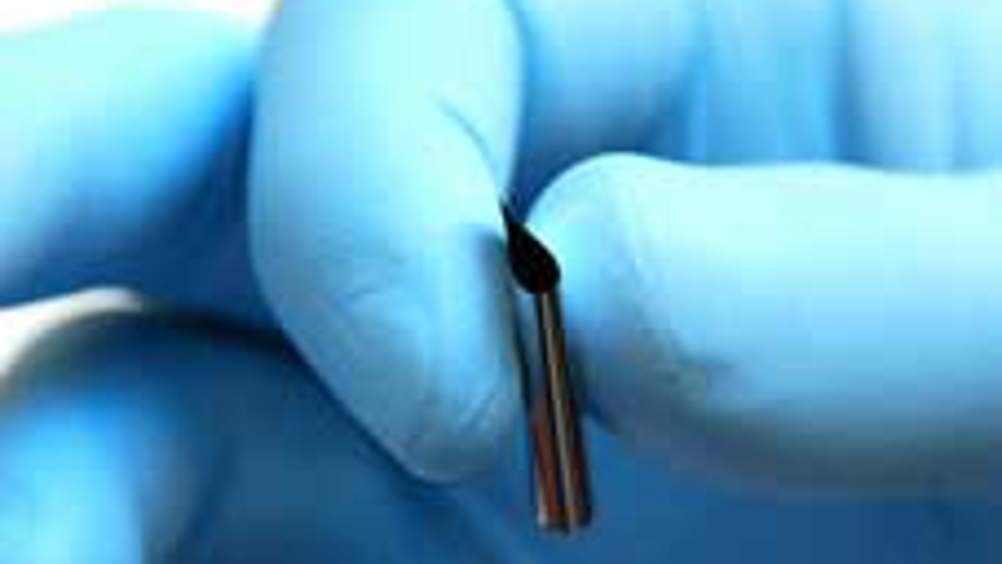

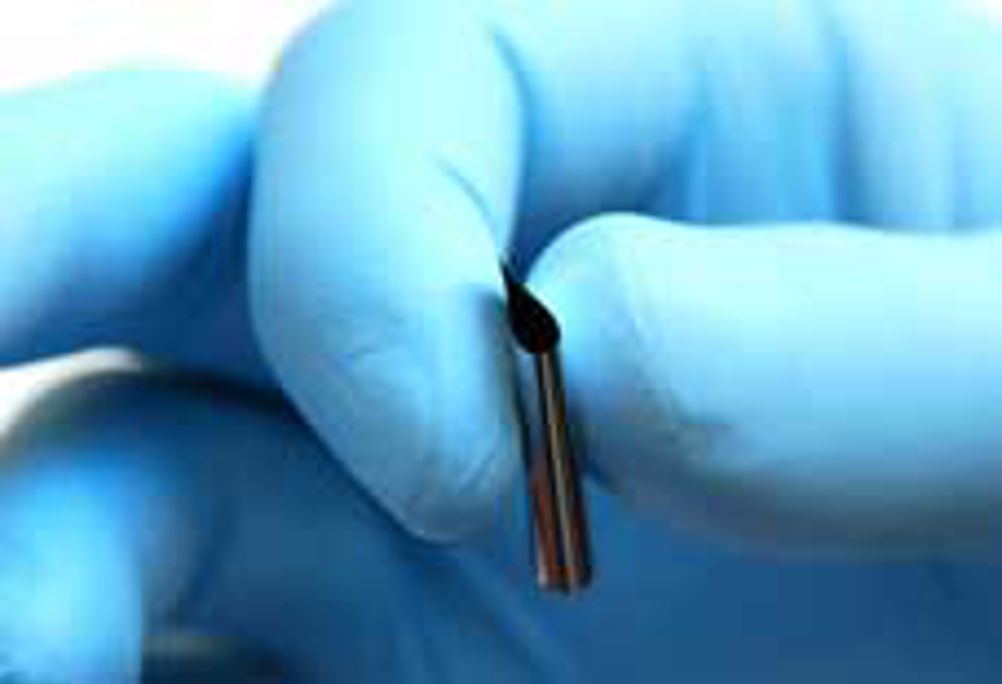

Smith used samples of 50 micron-thick commercial glass, which he etched for testing with hydrofluoric acid until the samples were only 10-20 microns thick. The resulting glass was so thin it could be flexed like a piece of plastic film.

The etched glass was placed in a polymer fluid for testing and up to 30,000V were applied. When the breakdown point was reached, electricity began to flow through the glass suddenly, with a flash and a bang that resembled a lightning bolt conducting through air. The polymer fluid was used to contain the lightning. In each case, failure occurred within 40 to 80 seconds.

The bulk glass tested is an alkali-free barium boroaluminosilicate glass produced in large quantities for flat panel displays and microelectronics packaging.

Its high-energy storage capability is attributed to its highly polarisable barium atoms, which contribute to the enhanced permittivity, and the alkali-free composition, which inhibits energy loss.

Also a factor is the nearly defect-free quality of the glass. The specific process used to manufacture this glass yields a more flaw-free material, especially at the surface, which further enhances resistance to breakdown.

Sheets of 30-micron-thick glass, which are expected to be available commercially in the near future, are likely to have even higher breakdown strength than the etched glass due to an even more uniform flaw-free surface.
