Graphene structure opens gap

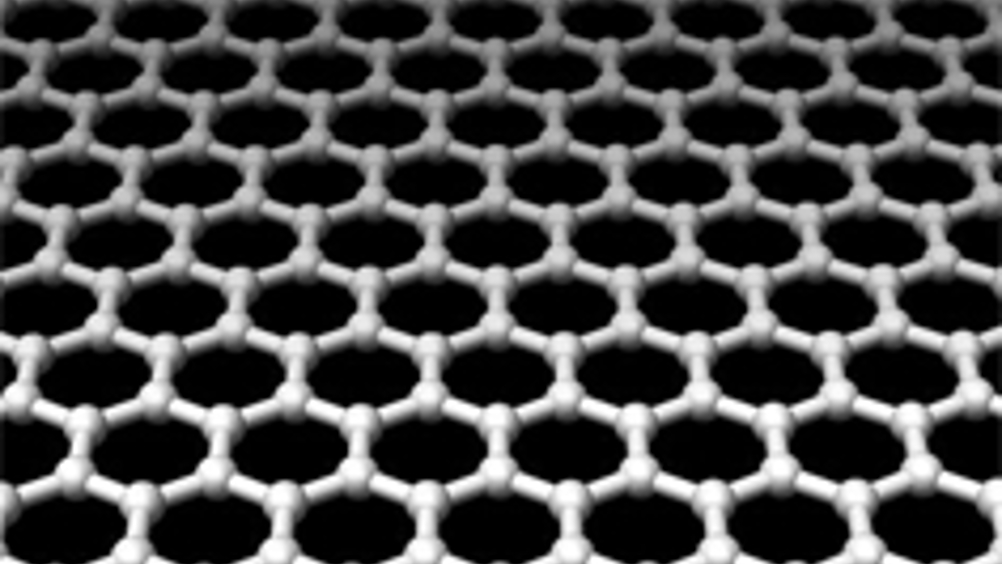

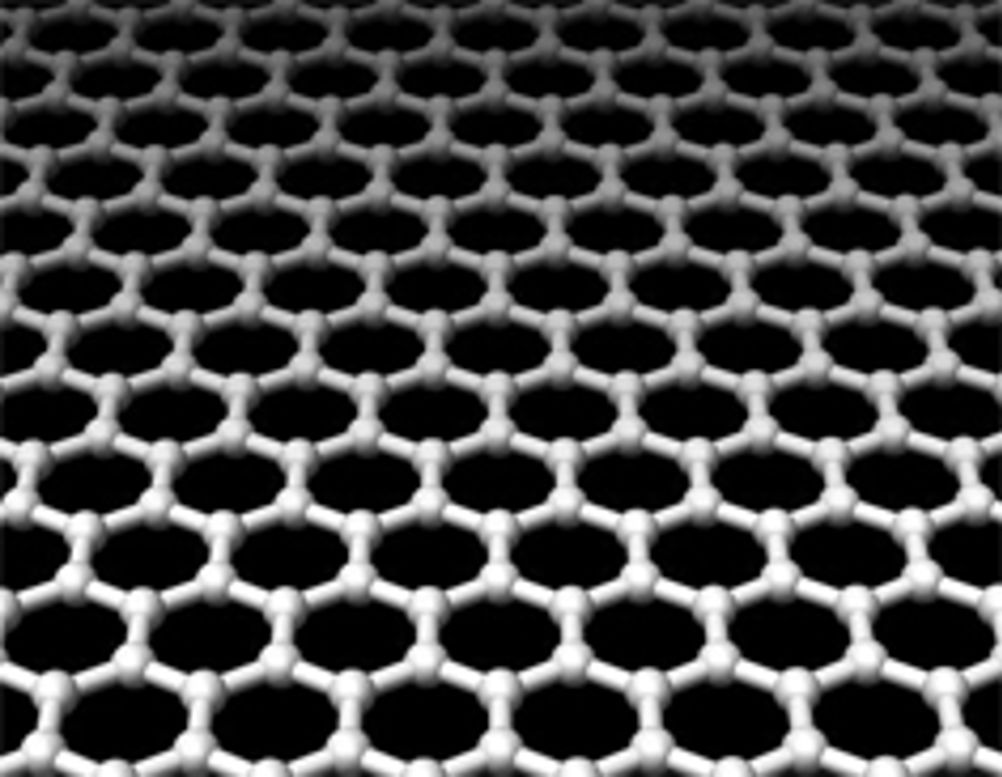

Applications, however, have been stymied because the semi-metallic graphene, which has a zero band gap, does not function effectively as a semiconductor to amplify or switch electronic signals.

While cutting graphene sheets into nanoscale ribbons can open up a larger band gap and improve function, ’nanoribbon’ devices often have limited driving currents, and practical devices would require the production of dense arrays of ordered nanoribbons, a process that so far has not been achieved or clearly conceptualised.

Yu Huang, a professor of materials science and engineering at the UCLA Henry Samueli School of Engineering and Applied Science, and her research team, in collaboration with UCLA chemistry professor Xiangfeng Duan, believe they may have found a new solution to the challenges of graphene.

In research to be published in the March issue of Nature Nanotechnology, Huang’s team reveals the creation of a new graphene nanostructure called graphene nanomesh, or GNM.

The new structure is able to open up a band gap in a large sheet of graphene to create a highly uniform, continuous semiconducting thin film that may be processed using standard planar semiconductor processing methods.

‘The nanomeshes are prepared by punching a high-density array of nanoscale holes into a single or a few layers of graphene using a self-assembled block copolymer thin film as the mask template,’ said Huang.

The nanomesh can have variable periodicities, defined as the distance between the centres of two neighbouring nanoholes. Neck widths, the shortest distance between the edges of two neighbouring holes, can be as low as 5nm.

This ability to control nanomesh periodicity and neck width is said to be very important for controlling electronic properties because charge transport properties are highly dependent on the width and the number of critical current pathways.

Using such nanomesh as the semiconducting channel, Huang and her team have demonstrated room-temperature transistors that can support currents nearly 100 times greater than individual graphene nanoribbon devices, but with a comparable on-off ratio. The on-off ratio is the ratio between the currents when a device is switched on or switched off and it usually reveals how effectively a transistor can be switched off and on.

The researchers have also shown that the on-off ratio can be tuned by varying the neck width.

‘GNMs can address many of the critical challenges facing graphene, as well as bypass the most challenging assembly problems,’ Huang said. ‘In conjunction with recent advances in the growth of graphene over a large-area substrate, this concept has the potential to enable a uniform, continuous semiconducting nanomesh thin film that can be used to fabricate integrated devices and circuits with desired device size and driving current.

‘The concept of the GNM therefore points to a clear pathway towards practical application of graphene as a semiconductor material for future electronics. The unique structural and electronic characteristics of the GNMs may also open up exciting opportunities in highly sensitive biosensors and a new generation of spintronics, from magnetic sensing to storage,’ she added.
