Setting standards

Graphene has been hailed as the ‘wonder material’ of the current generation.  Despite being as thin as an atom, it is tougher than diamond and stronger than steel and can conduct electricity better than copper. Its impressive qualities could transform every aspect of our lives, from mobile phones that can be rolled up to medical devices that connect directly to neurons.

Since its discovery in Manchester a decade ago, almost 12,000 patents and patent applications have been filed for the material. Now, companies are beginning to put it to commercial use. Head NV last year introduced a graphene-infused tennis racket. Meanwhile, Apple, Saab and Lockheed Martin all have plans under way to develop graphene membranes and circuits in the near future.

But excitement for its applications has so far been tempered by a big flaw; there are no standards for the material. ‘Standards are particularly important for novel, revolutionary materials such as graphene,’ said Alexander Tzalenchuk, a National Physical Laboratory (NPL) fellow. ‘There is a lot of hype surrounding it and it is very easy to undermine confidence.’

For instance, a company may claim that a product has graphene in it, when it is in fact graphite. ‘The material may not be as strong as you would expect, or would not conduct heat or electricity as well, or would not hold as much electric charge,’ said Tzalenchuk. ‘Before any standard can be developed, we need to understand what kind of material we are dealing with and how it can be characterised.’

Standards are particularly important for novel, revolutionary materials such as graphene. Before any standard can be developed, we need to understand what kind of material we are dealing with and how it can be characterised.

Alexander Tzalenchuk, National Physical Laboratory

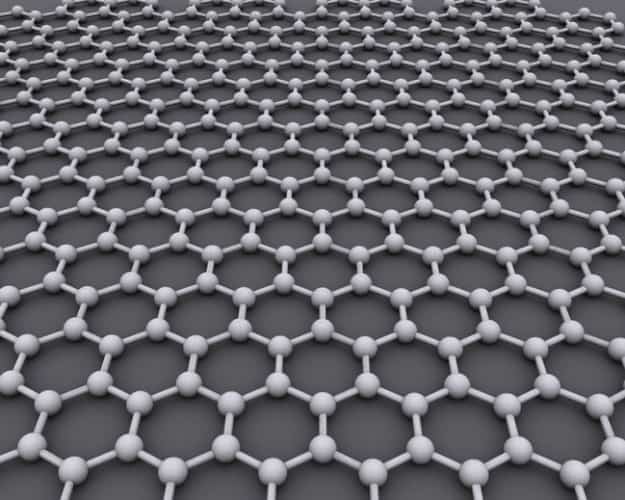

But characterisation has so far proved tricky. Graphene in its pristine form is just one layer of carbon atoms. This may sound simple, but its electronic, optical and mechanical properties are governed by complex quantum behaviour. As well as this, graphene’s characteristics are sensitive to the environment, making the measurement of its features particularly difficult.

In November, 20 scientists working on graphene at NPL signed an agreement with Manchester University to provide the measurement capability necessary to characterise graphene. ‘Currently we are working towards research projects where either a combination of existing methods or completely new online characterisation techniques could be developed as a result,’ said Manchester University research associate Antonios Oikonomou. Researchers already have a number of techniques to investigate graphene’s properties. One of the most common is Raman spectroscopy, in which a laser is used to shine onto the graphene and measure the reflected radiation. This radiation shifts in frequency and provides scientists with information about the material’s layers. Another technique is atomic force microscopy (AFM) in which a very sharp tip is scanned over graphene atoms.

‘All these techniques are now well understood; however, they all suffer one big downside: they are very impractical to use in a manufacturing environment for various reasons’, said JT Janssen, a principle research scientist at NPL. ‘With Raman and AFM, you can only investigate minute areas of the graphene — not much use for a 32in display.’ Instead, NPL is working on characterisation techniques that can be used in real time on large amounts of graphene.

’With Raman and AFM, you can only investigate minute areas of the graphene — not much use for a 32in display

JT Janssen, NPL

One technique is a microwave measurement. Although graphene is transparent, it interacts strongly with microwaves, even though their wavelengths are 100,000 times longer than light. As a result, if a graphene film is placed in a microwave field, it will disturb the field. The extent of the disturbance is an indication of the sheet resistance and conductivity.

‘At present, these methods have been developed in a lab environment,’ said Janssen. ‘There will be challenges to integrate the measurement system in a production environment where there may be higher levels of noise, interference and environmental variations. Our existing system uses quite expensive instruments, but we are developing a much simpler and cheaper version that is more suited to the production line.’

According to Lux Research, sales of graphene will grow from £5.7m ($9m) in 2012 to £80m ($126m) in 2020. If the UK gets the standards right, it could gain a large slice of the market. For now, it seems the government is providing its backing. In March’s budget, chancellor George Osborne pledged investment in graphene, describing it as a ‘great British discovery that we should break the habit of a lifetime with and commercially develop in Britain’.

Oikonomou believes the real benefits of graphene will be in its use for ‘green’ technologies, such as membranes, lightweight composites and batteries. ‘I strongly believe that a combination of the material’s unique properties with innovative application design driven by social needs could lead to useful products and processes,’ he explained. ‘It is the need to solve a problem that leads to disruptive and innovative technologies, and there are no larger needs than the ones that we face on a global level.’
